CONTXT Platform Overview
CONTXT Platform
PAXAFE's CONTXT platform leverages near real-time telematics, third-party and ERP data to provide a digital twin to the physical supply chain capable of answering who, what, when, where, how and why. Enables access to end-to-end product Remaining Shelf-Life calculation in real-time. CONTXT also provides the ability to proactively predict shipment delays and temperature deviation, which notifies of upcoming deviations up to 120 minutes in advance.

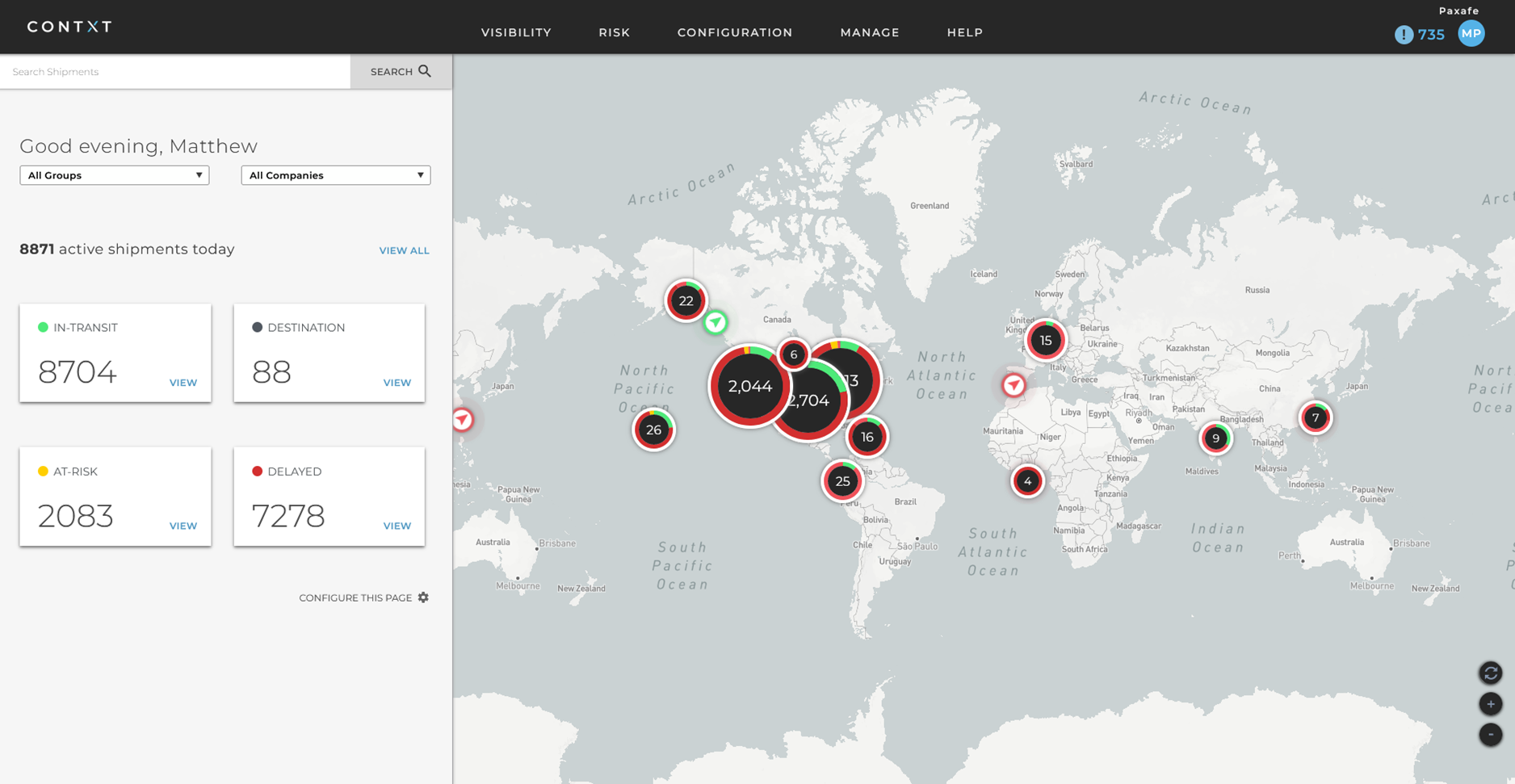

CONTXT Dashboard: World view of all active shipments. Navigate using the shortcut menu on the left pane. Provides an overview of all shipments
- Inventory: Shipments raised, waiting for a tracker to be linked
- New: Shipments that are still at origin facility ready to be shipped
- In-Transit: Shipment left the origin and is en-route to a destination
- Destination: Shipments that reached the destination
- Completed: List of all completed historical shipments – last 7-year data will be available to search in real-time. Data beyond 7 years will be achieved and retrieved up on request.
- Green: In-transit (no alerts)
- Yellow: In-transit (with warnings)
- Red: In-transit (with alarms)
- Dark Red: In-transit (delayed)

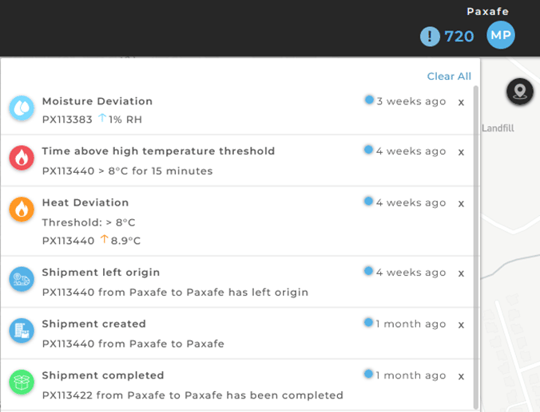

Platform notifications are available from the top right drop down - alerting the user on the most applicable shipment based alarms:
Select a specific shipment to additional tracking details:

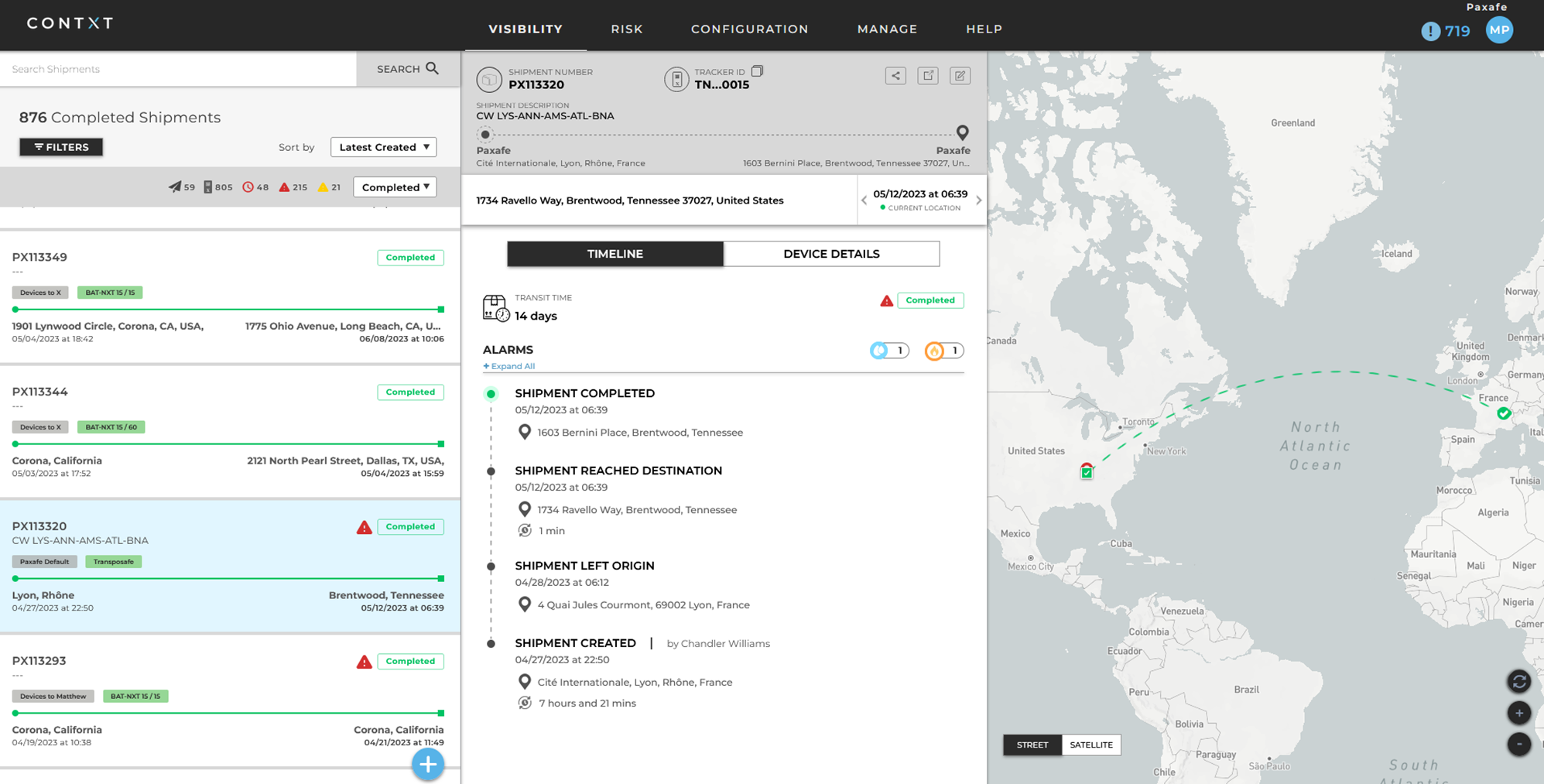

Shipment tracking details:
3 Panes:
- Left: shows the list of shipments based on the shortcut selection from the home page. Also includes shortcuts to filter shipments based on status and risk level (at-risk, critical, delayed, etc.)
- Middle: shipment detail section includes all the major timeline events of the shipment along with the device detail tab to view sensor data of the shipment
- Right: Map view of the selected shipment. Option to toggle between street and satellite view. Option to add custom geo-fencing at a shipment level to receive notifications.
Additional options: with single click icons, you can export the shipment as a report (pdf version) or create a sharable link to share just the selected shipment.
Shipment filters:
From left to right:
- Carrier based shipments
- Device based shipments
- Delayed shipments
- Critical shipments
- At risk shipments
Device CONTXT:
Track and trace is not enough – you need CONTXT surrounding your supply chain data. CONTXT will help you understand the ‘HOW’ and the ‘WHY’ behind shipment excursions. Notifications and dynamic prediction of any potential excursions
-Time above/below temperature threshold
-Max, Min temperature
-MKT: Mean Kinetic Temperature
-Humidity
-Unauthorized package open
-Product damage
-Drop
-Pickup
-Tilt
-Package orientation
Warning and Alarms:
Real-time configurable alerts via different communication channels:
-Push notifications
(web and mobile app)
-Text notifications
-Email notifications

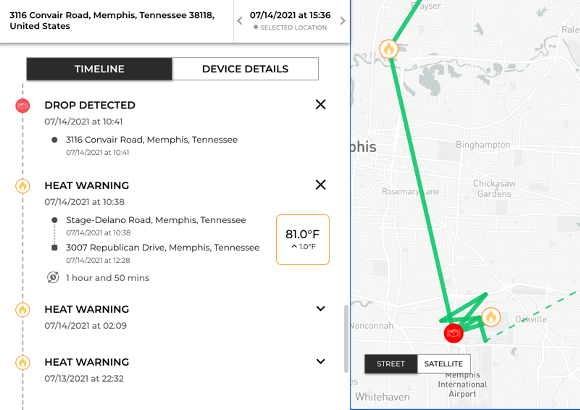

Temperature warning and alarms will include the start time and end time along with location context
Product Profile
Pre-configured product profiles can be created for each customer/use-case with specific temperature and stability budget thresholds. These profiles can be remotely applied to devices while creating a new shipment in real-time.

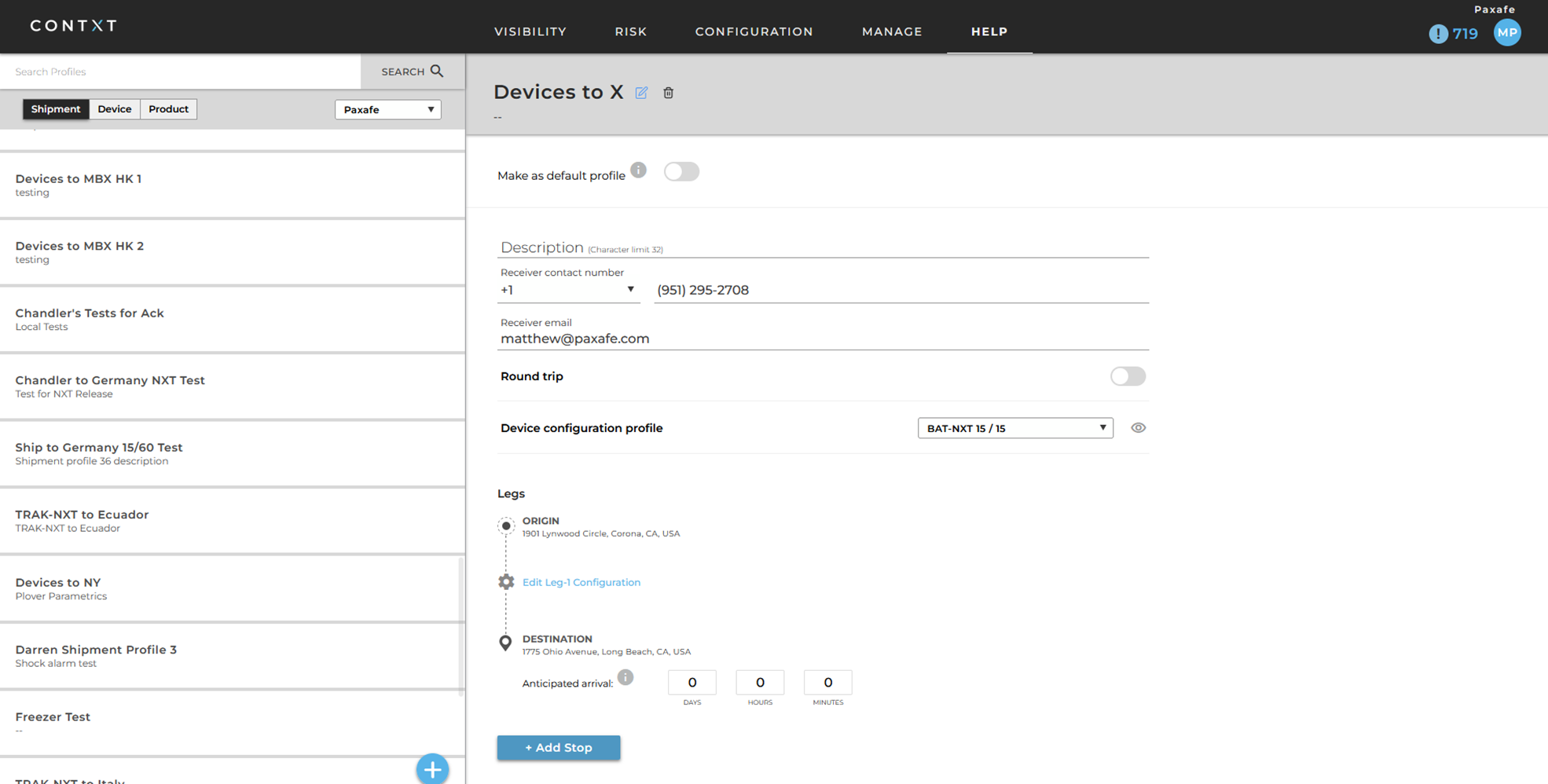

Shipment Profile
Pre-configured shipment profiles can be created for each customer/lane with a specific origin, destination, stops, geofence locations. These profiles can be remotely applied to devices while creating a new shipment in real-time.
